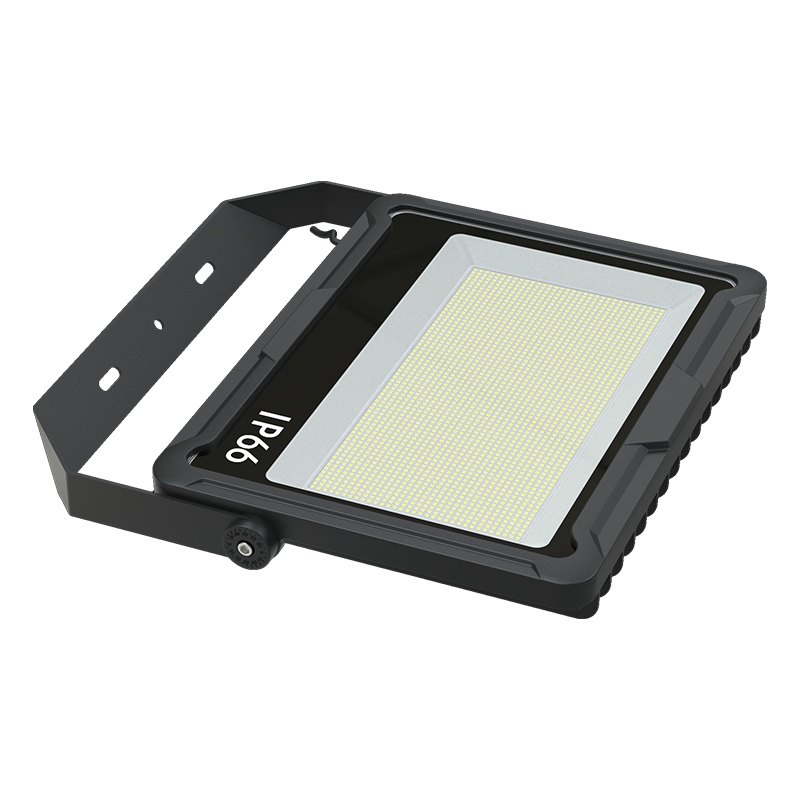

400w outdoor led flood light

Orientalight's 400w outdoor led flood light doesn't just light up spaces; it transforms them. But raw power is only part of the story. The patented hybrid cooling system offers advanced phase-change materials and active convection channels ensures the fixture maintains optimal operating temperatures even in the most punishing environments. No matter where your project is located, this flood light performs flawlessly, year after year. We've designed a modular LED array that allows individual cluster replacement reducing maintenance expenses by an astonishing 80% compared to conventional floodlights. Less downtime, lower costs, and unparalleled performance. For mega-scale industrial projects, infrastructure developments, and professional sports venues, this is the lighting solution that delivers on every promise.

 Parameter (Specification)

Item No.	FL2400
Product Model	LM-FLG585P400Y02-CW
Power	400 Watts
Dimensions	585*512*72 mm
Input Voltage	AC100 – 277V, 50/60Hz
Color Temperature (CCT)	3000K / 4000K / 5000K / 6000K
Luminous Flux	64000 Lm
LED Type	Lumileds
Beam Angle	30° / 60° / 90° / 120°
IP Rating	IP66
Operating Temperature	-40°C to +60°C
CRI	> 70Ra
Power Factor	0.95
Lifespan	50,000 hours
Warranty	5 years

Product Feature

1. Precision Aiming

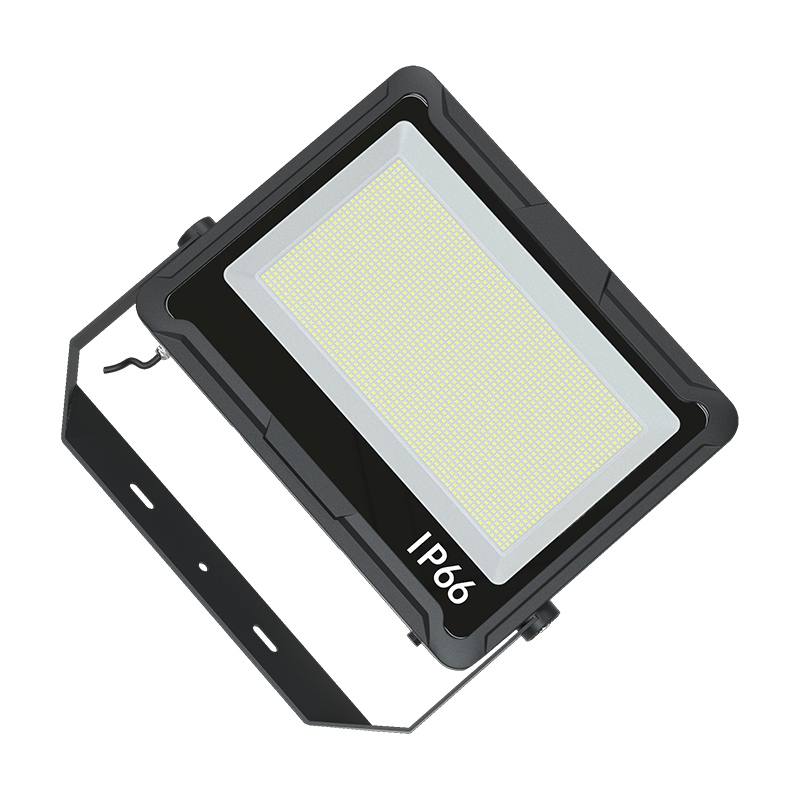

The 400w outdoor led flood light supports 300° of adjustment, allowing precise beam targeting for billboards, facades, sports fields, and parking lots. This flexibility ensures light reaches exactly where it is needed.

2. All-Weather Protection

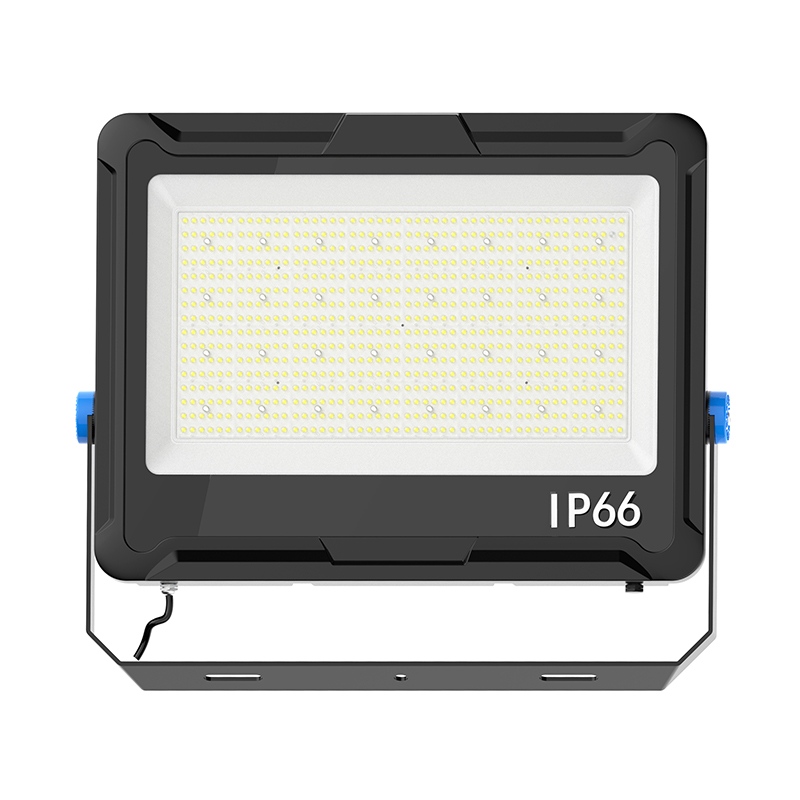

Rated IP66, the fixture withstands dust ingress and high-pressure water jets. Rain, snow, and humidity do not affect operation, making it suitable for year-round outdoor use.

3. Impact-Resistant Build

The housing uses high-hardness ADC12 aluminum alloy, providing excellent impact resistance. This rugged construction protects internal components from physical shocks and mechanical stress.

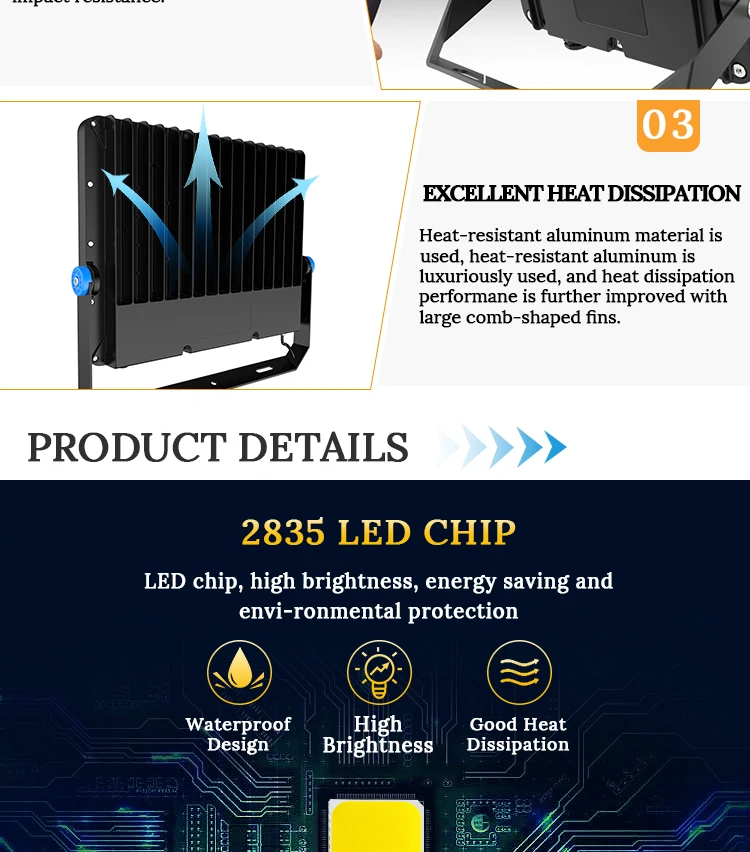

4. Efficient Cooling

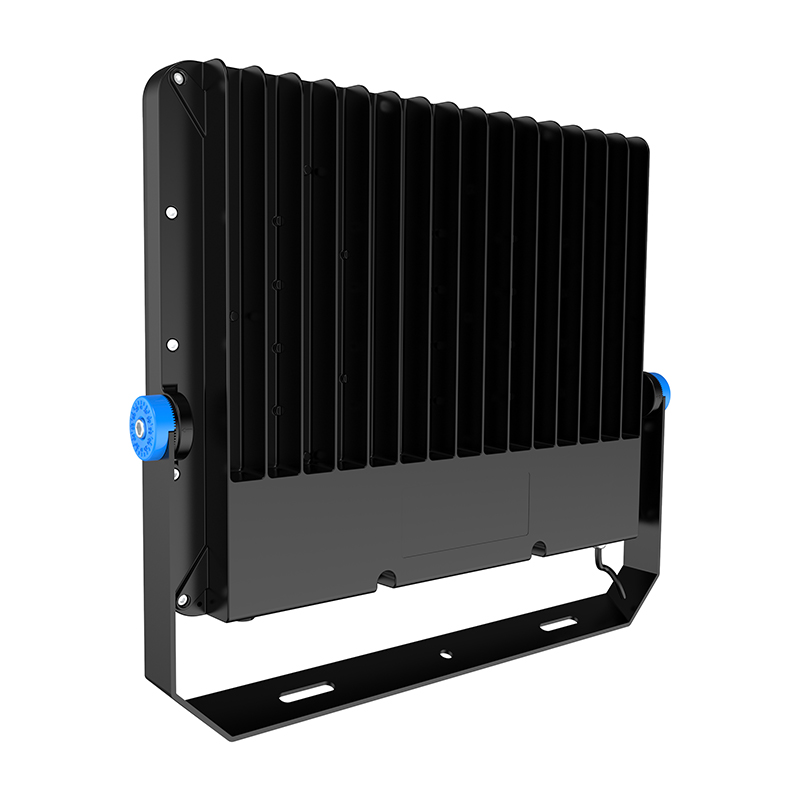

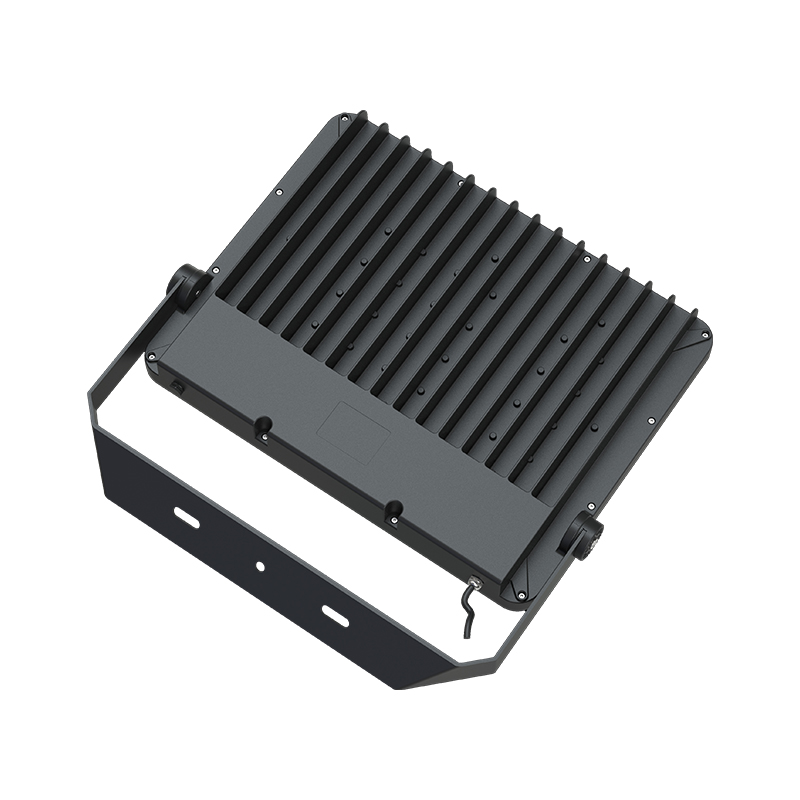

A large comb-shaped fin heat sink, made from heat-resistant aluminum, enhances thermal management. It transfers heat away from the LEDs and driver, preserving performance and extending service life.

5. High-Performance LEDs

The fixture uses advanced 2835 LED chips, delivering high luminous output with excellent energy efficiency. Bright, uniform illumination with low power consumption reduces electricity bills and environmental impact.

6. Energy Efficient

High-efficiency LED technology significantly reduces energy consumption compared to traditional lighting, supporting sustainable operations and lowering carbon footprint.

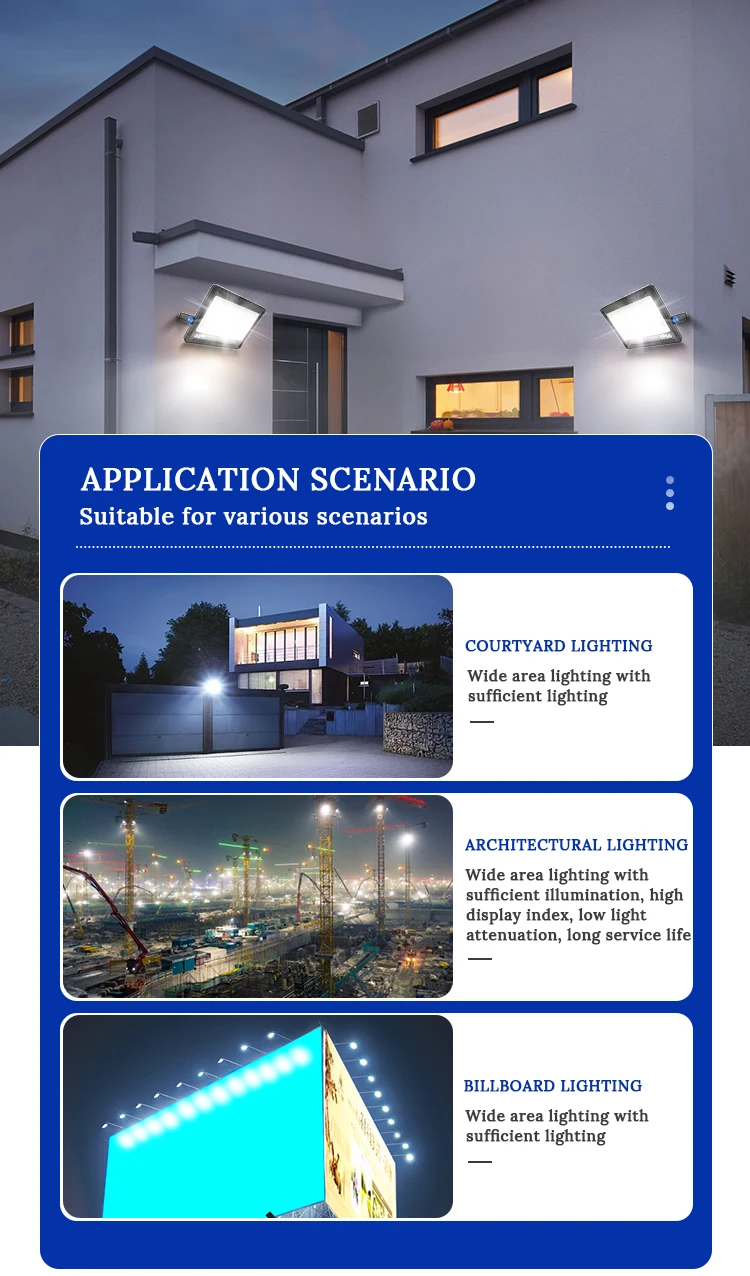

Product Application

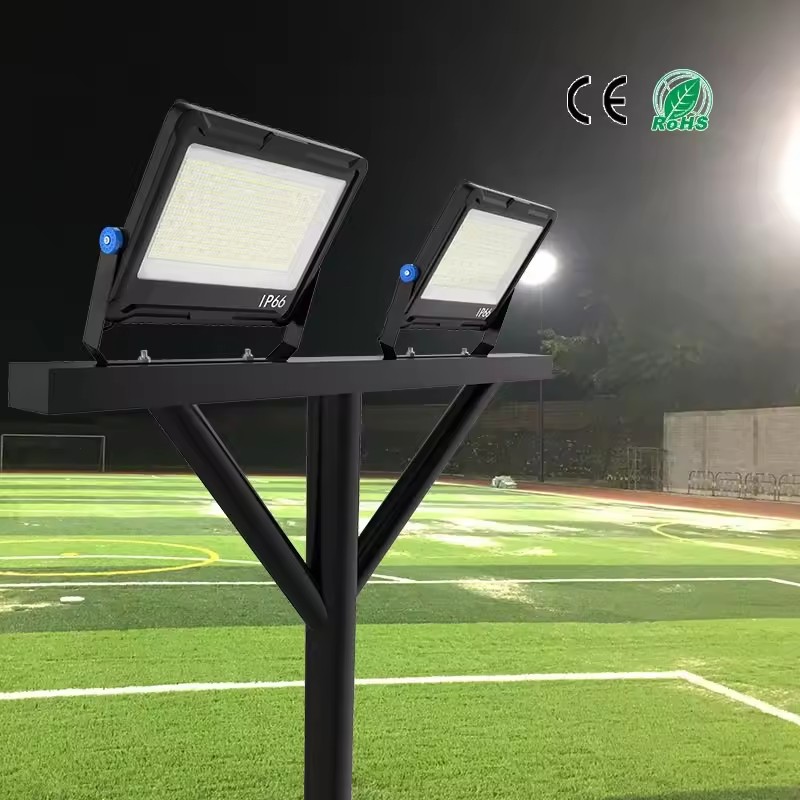

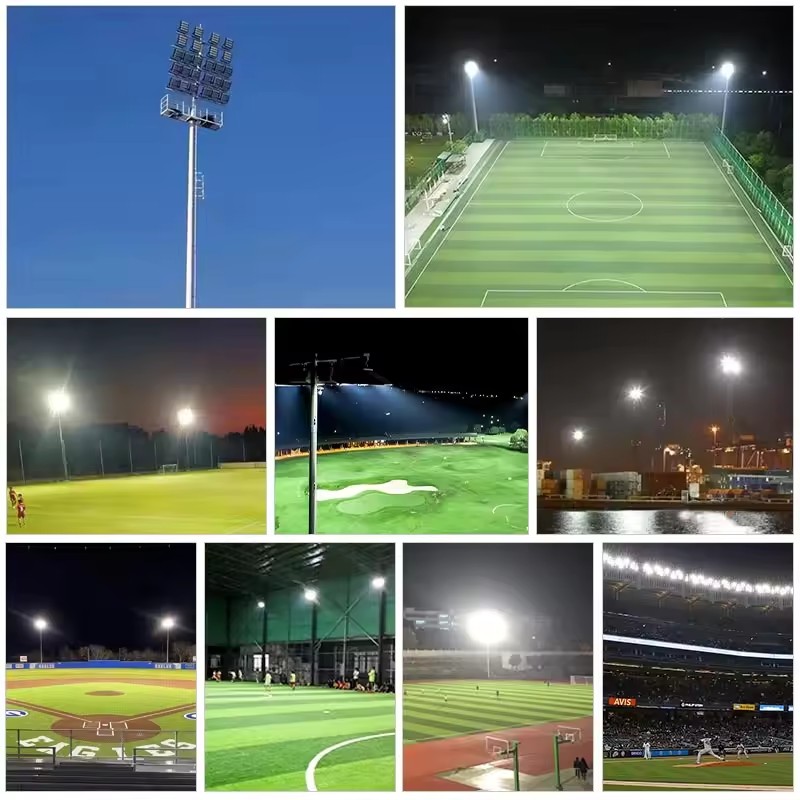

The 400w LED Flood Lights are widely used in sports field, subway, street, highway, square,billboard, exhibition hall,parking lot, tennis court,gymnasium,park,garden,building facade,any indoor or outdoor areas.

Product Details

This 400w outdoor led flood light doesn't just light up spaces but unlocks new possibilities for the world's most ambitious projects. With a groundbreaking 64,000 lumens of output, this industrial-strength luminaire outperforms 1200W metal halide systems while consuming 70% less energy a testament to our commitment to both performance and sustainability. The revolutionary multi-chip LED array and precision-engineered optics deliver uniform 160° wide-angle coverage across 2,000+ square meters, eliminating dark spots and minimizing light pollution with exacting precision. And because we understand that some of the world's most critical projects are located in the harshest environments, we've equipped this fixture with aerospace-grade aluminum housing and advanced nano-thermal coating that achieves 30% better heat dissipation than conventional designs ensuring stable, reliable performance from the +70°C heat of the desert to the -50°C cold of the arctic. From massive mining operations and sprawling container ports to iconic stadiums and monumental infrastructure projects, Orientalight is proud to illuminate the achievements that shape our world. When you choose Orientalight, you're choosing more than a light—you're choosing a partner committed to innovation, excellence, and a brighter future for all. Let's light the world's greatest projects together.

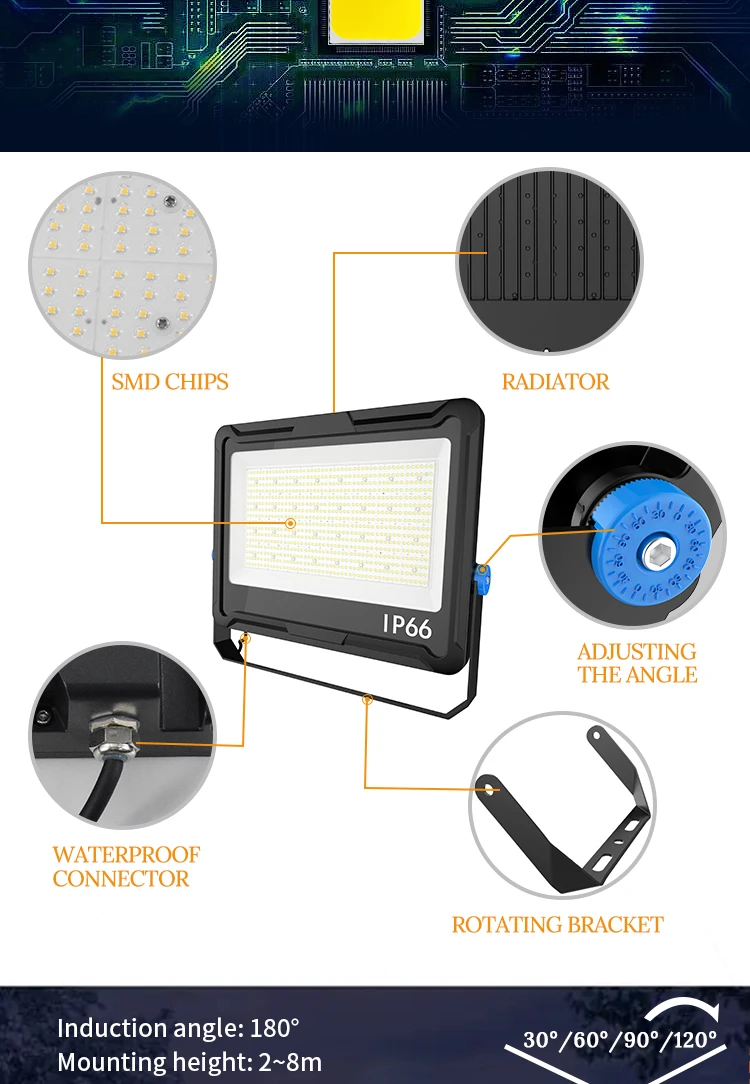

Key Components

Component	Description
SMD Chips	High-brightness surface-mount LED chips (2835 or 3030) delivering excellent luminous efficacy, consistent color rendering, and a long operational lifespan.
Waterproof Connector	Sealed connector that prevents moisture ingress at cable entry points, maintaining IP66 integrity and protecting internal wiring from water and dust.
Radiator	Large finned aluminum heat sink that efficiently dissipates heat generated by the LEDs and driver, ensuring stable operation and extending the fixture's service life.
Adjusting the Angle	Integrated mechanism that allows the fixture to be tilted across a wide range (up to 300°) for precise beam positioning to suit different application requirements.
Rotating Bracket	Heavy-duty metal bracket that provides secure mounting and supports multi-axis rotation, enabling flexible installation and stable fixation under various conditions.

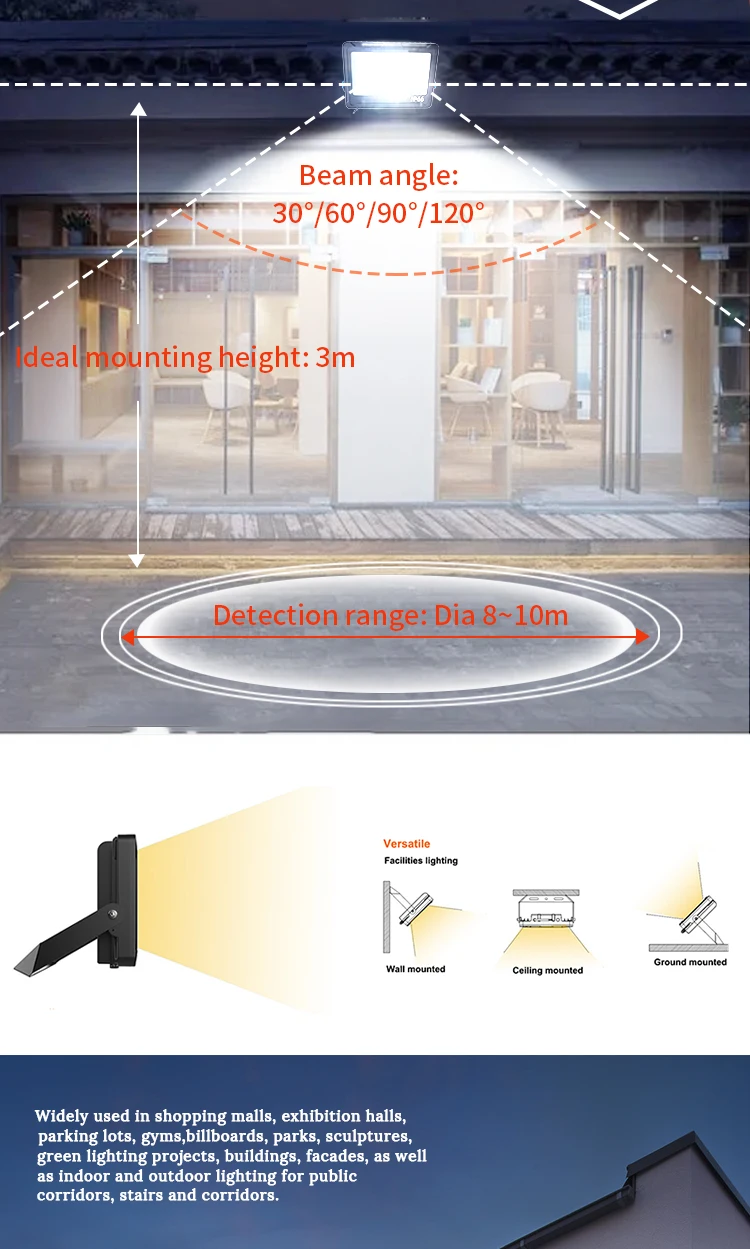

Sensor & Optical Specifications

Parameter	Value / Specification
Induction Angle	180°
Mounting Height Range	2 – 8 m
Ideal Mounting Height	3 m
Beam Angle Options	30° / 60° / 90° / 120°
Detection Range (Diameter)	8 – 10 m

Product Quality Assurance

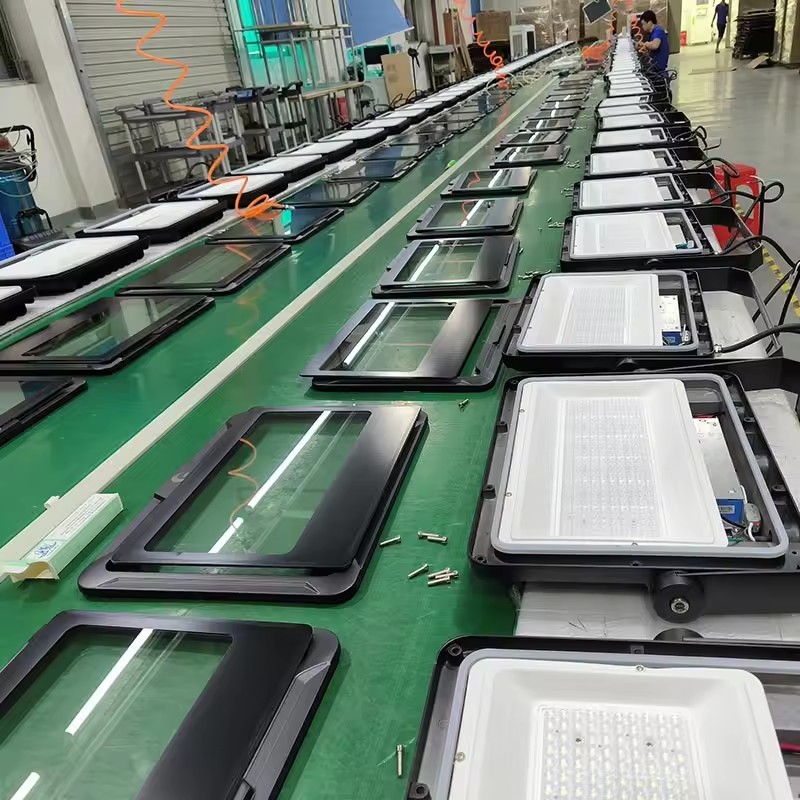

1)Our quality control (4 times 100% checking and 24 hours aging)

1.Raw material 100% check before production.

2.order must have a first sample and full check before manufacturing process.

3.100% check before aging.

4.24 hours aging.

5.100% final inspection before packing.

2)Our service:

1.Your inquiry related to our products or prices will be replied in 2 hours even during holiday.

2.Well-trained and experienced staffs to answer all your inquiries in fluent English.

3.We accept “support” OEM&ODM orders

4.Distributorship is offered for your unique design and some our current models.

5.Protection of your sales are ideas of design and all your private information.

3) Warranty terms:

1/1 replacement of defects within the warranty period.

FAQ

1. What is the actual lumen output of the 400W outdoor LED flood light, and what traditional fixture does it replace?

The 400W model delivers 64,000 lumens with an efficacy of 160 lumens per watt. It directly replaces conventional 1200W to 1500W metal halide systems while consuming approximately 65% to 70% less energy. This translates into substantial electricity savings without compromising brightness.

2. What beam angle options are available for this fixture?

The fixture offers four beam angle options: 30°, 60°, 90°, and 120°. The 30° narrow beam suits long-distance targeting for billboards or high-mast applications. The 60° and 90° angles work well for sports fields, parking lots, and general area lighting. The 120° wide beam provides broad coverage for plazas, gardens, and large open spaces.

3. What is the coverage area for a single 400W fixture?

With its 160° wide-angle optics, a single fixture can effectively cover over 2,000 square meters with uniform illumination. Actual coverage depends on the mounting height and selected beam angle. For precise planning, we recommend consulting our technical team for a customized lighting layout.

4. What is the IP rating and is this fixture suitable for permanent outdoor installation?

The fixture carries an IP66 rating, providing complete protection against dust ingress and high-pressure water jets. This makes it suitable for permanent outdoor installation in any weather condition, including heavy rain, snow, and high-humidity environments. The aerospace-grade aluminum housing with nano-thermal coating ensures reliable operation across temperatures from -40°C to +60°C.

5. How does the modular LED array reduce maintenance costs?

The fixture uses a modular LED array design that allows individual cluster replacement instead of replacing the entire fixture. This reduces maintenance expenses by up to 80% compared to conventional floodlights, minimizing downtime and lowering long-term operational costs.

6. What is the warranty and how are defects handled?

The fixture is backed by a comprehensive 5-year warranty. We offer a 1:1 replacement for any defects found within the warranty period. Our quality control includes 100% raw material inspection, first-sample verification, 24-hour aging tests, and final inspection before packaging to ensure every unit meets our standards before shipment.

7. How does the integrated lens-and-glass-cover design benefit maintenance?

The lens is integrated into a durable glass cover, eliminating the need for tools during cleaning and maintenance. This design simplifies routine upkeep, allowing quick access for cleaning without disassembling the fixture, which saves time and reduces labor costs.
